新清华学堂是清华大学在百年校庆期间建成的重要文化设施,2011年4月落成,2012年4月启用。新清华学堂由校友池宇峰、徐航、宋歌、方方捐资建设,清华大学建筑学院李道增院士主持设计。场馆内观众大厅设池座和三层楼座,共有座席2011个,舞台配有双侧台,升降乐池可容纳百人乐队,按专业要求配置灯光、音响、舞台机械和反声罩,另有化妆间、多功能厅、舞蹈排练厅、贵宾接待室、贵宾会议室等其它配套设施。适合举办交响音乐会、歌剧、芭蕾等大型专业演出和大型会议。
The New Tsinghua Xuetang was built to commemorate Tsinghua University’s 100-year anniversary. This architectural masterpiece is designed by an academician of the Faculty of Architecture Design Li Daozeng, and is sponsored by 4 alumni: Chi Yufeng, Xu Hang, Song Ge and Fang Fang. There are a total of 2011 seats in the main seating area of this three-floor auditorium. It is also equipped with two side stages and an orchestra pit with elevation, with the main stage's proscenium being 18 meters wide and 11.5 meters high. This auditorium is also equipped with professional lighting and audio systems to cater to large-scale concerts at the highest levels of professional standards and students' activities to promote academic interactions.

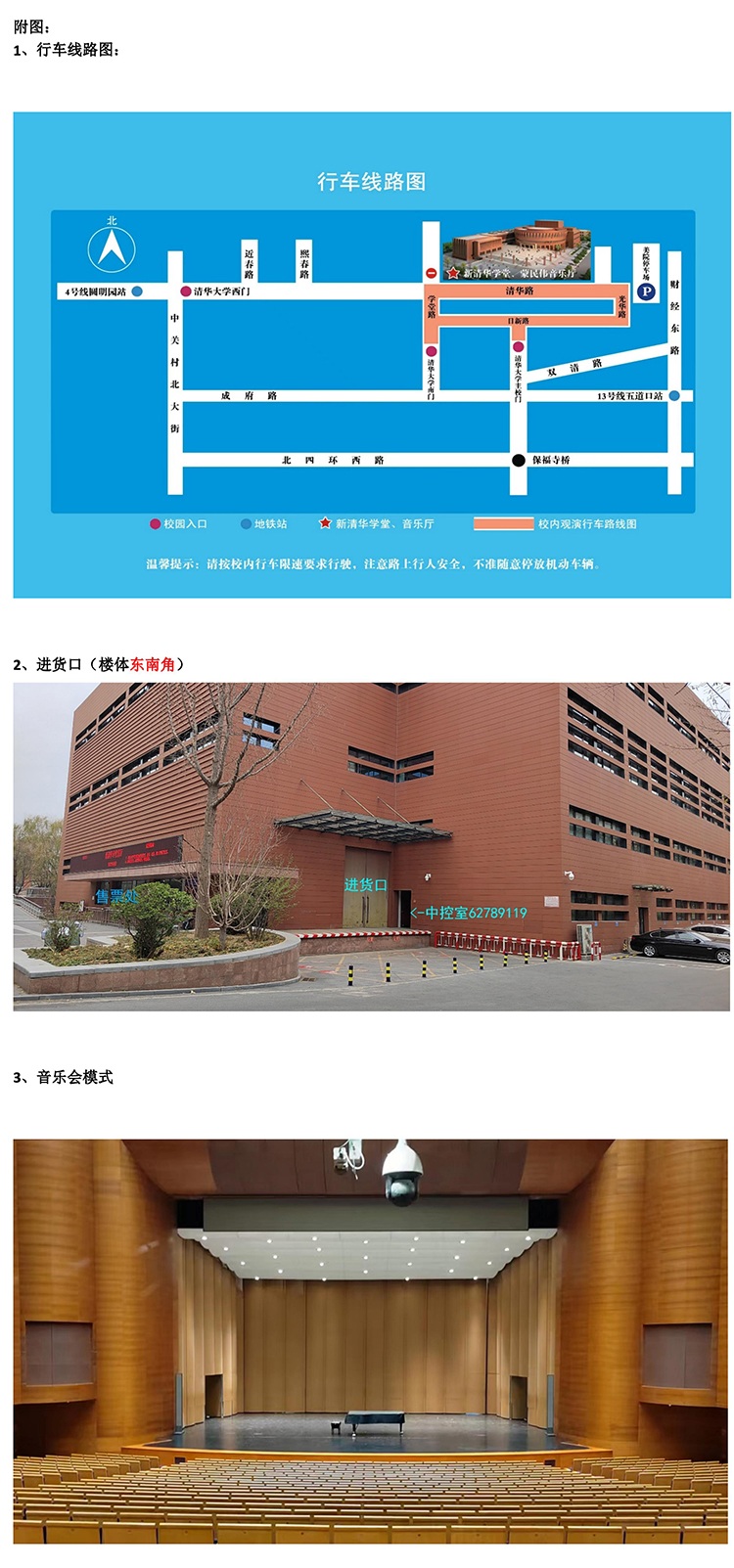

外观

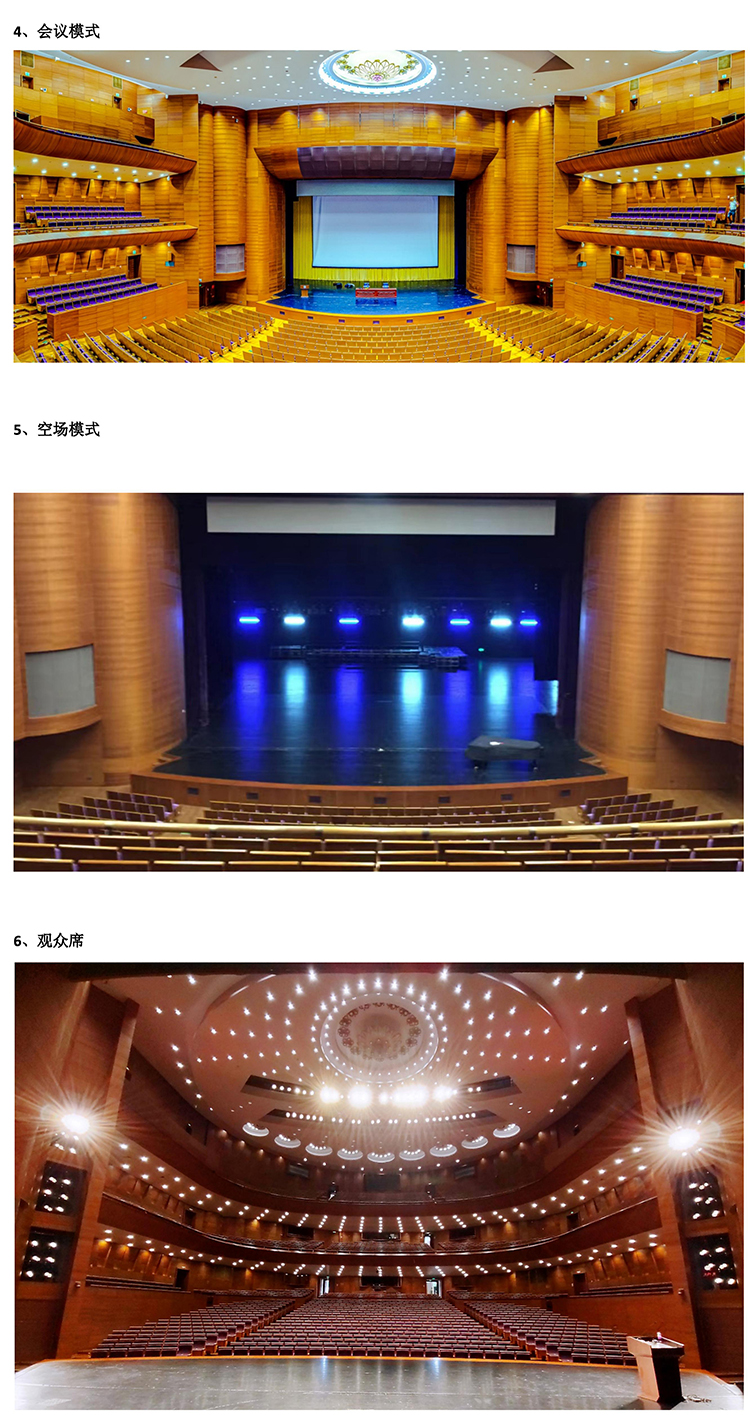

内景

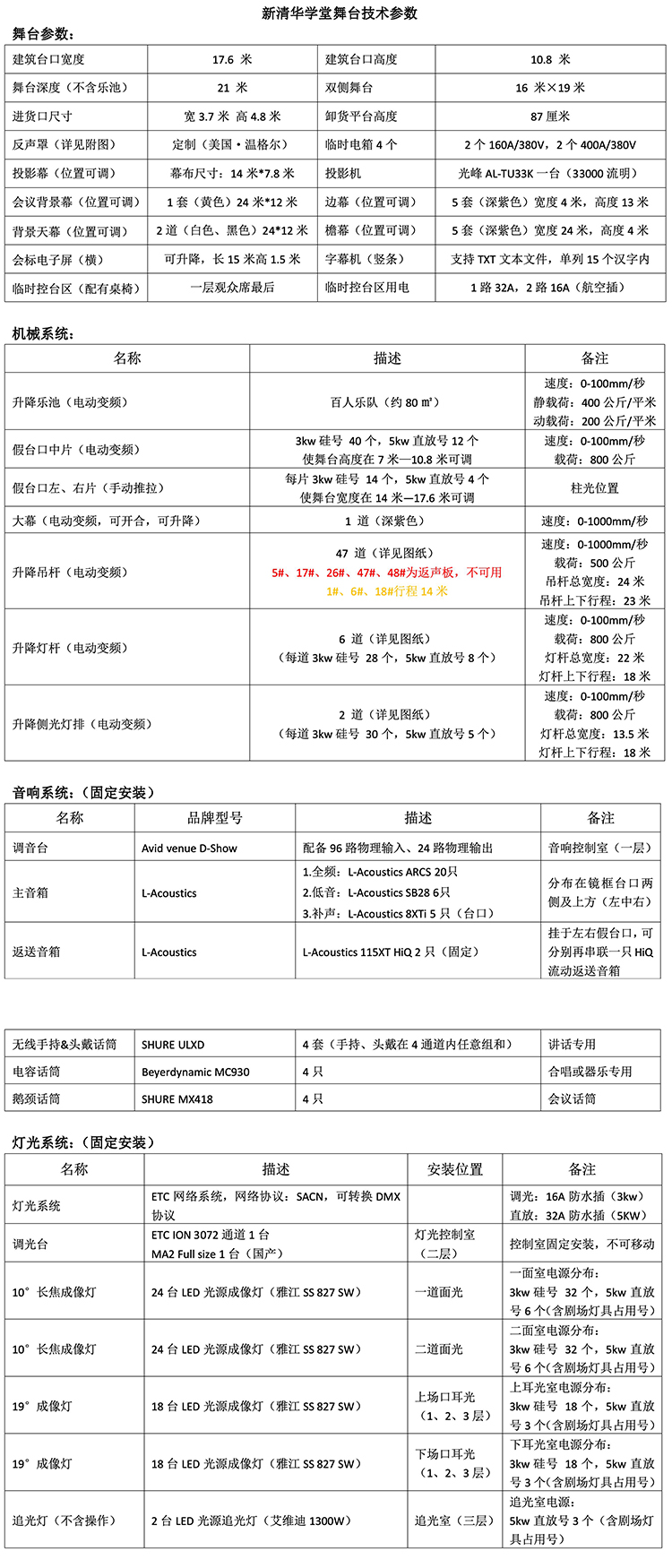

一、音响
调音台: Avid venue D-Show [美国](配备96路物理输入、24路物理输出)
主扩音箱: L-Acoustics ARCS [法国 20只](主扩全频)/ L-Acoustics SB28 [法国 6只](主扩低音)
返送音箱: L-Acoustics 12XTi [法国 2只](固定)
话筒: 森海塞尔 EW300 无线手持话筒 [德国 4只] / 797 CR-880 立体声鹅颈话筒 [中国 2只]
(音控室在一层观众席最后屋内)
二、灯光
3KW调光硅路:576路 / 5KW直通硅路:192路
序号 | 安装位置 | 名称 | 型号 | 数量 | |
1 | 控制室 | 调光台 | ETC ION 3072 | 1 | |
2 | 一道面光 | 远程长焦成像灯 | ETC SOURCE FOUR 5度 750W | 24 | |
3 | 二道面光 | 长焦成像灯 | ETC SOURCE FOUR 10度 750W | 24 | |
4 | 追光室 | 1800W追光灯 (不含追光师) | robertjuliat 1159 7/14.5 | 2 | |
5 | 上场门耳光 | 平凸聚光灯 | 南艺CL-9005PC | 6 | |
成像灯 | 南艺cl-19-26度 | 6 | |||
6 | 下场门耳光 | 平凸聚光灯 | 南艺CL-9005PC | 6 | |
成像灯 | 南艺cl-19-26度 | 6 |
